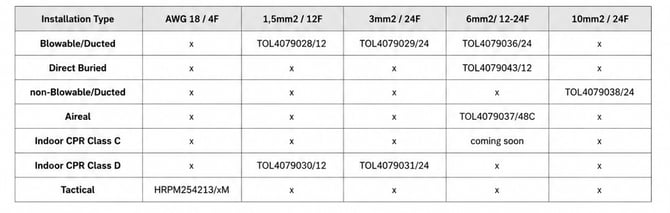

Below is a table with all models and specifications for each cable.
InOne Blowable Hybrid Cables Table
| Product No | Cable Type | Copper Area* | Fiber Type | Fiber count | Cable ø |
Drum | Weight |
| TOL4079028/12 | Blowable |
1.5mm2 4x0.75mm2 |
G.657 | 24 | 5.7mm | k10 8000m k8 4000m | 45 kg/km |
| TOL4079029/24 | Blowable |
3mm2 4x1.5mm2 |
G.657 | 24 | 6.2mm | k8 3000m | 80 kg/km |
|
TOL4079036/24 |
Blowable |
6mm2 8x1.5mm2 |
G.657 | 24 | 9.8mm | k12 8000m | 170 kg/km |
|
Product No |
Cable Type | Copper Area* | Fiber Type | Fiber count | Cable ø |
Drum |
Weight |
|
TOL4079030/12 |
Fire Rated |
1.5mm2 4x0.75mm2 |
G.657 |
12 |
7.9mm |
k12 8000m
k10 4000m |
95 kg/km |
| TOL4079031/24 | Fire Rated |
3mm2 4x1.5mm2 |
G.657 | 24 | 10mm | k10 2000m | 145 kg/km |
| TOL4079037/48C | Aerial |
6mm2 8x1.5mm2 |
G.657 | 48 | 13.9mm | k11 3000m | 220 kg/km |
| TOL4079038/24 | Non-Blowable |
10mm2 2x10mm2 |
G.657 | 24 | 12.6mm | k11 500m | 271 kg/km |
- Often the InOne Hybrid cables come in 4 or 8 copper wire in one cable despite that in most applications you need only 2 wires for DC. The reason for that is keep the whole cable round to insure the cable is blowable in micro ducts. see figure 1 below
- The copper wires insulation is colored red or black. During installation all reds must be joined together and all blacks must be joined together at both ends of every cable segment. This will effectively provide 2 copper conductor with the sum of the area of the joined wires. For an example if you use the cable TOL4079029/24 which has 4x1.5mm2 copper cables 2 black and 2 red (Figure 1 below) and you join similar color copper conductors at both ends you get an effective copper of 2 x 3mm2 and this measurement should be the base of your power calculations.

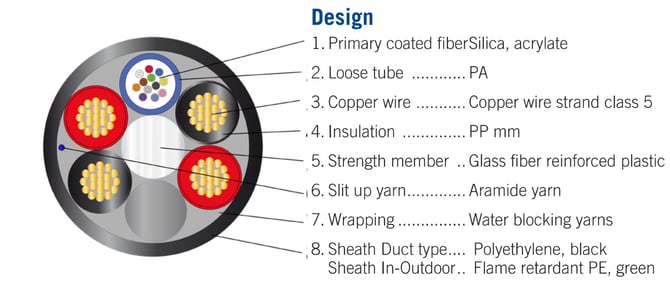

Figure 1 - InOne Hybrid Cable Cross Section
Notes regarding AWG (American Wire Gauge)
Each AWG step changes the diameter in certain ratio, those steps do not convert to the metric mm2 area in whole numbers (integers) therefore there is no accurate conversation between AWG and mm2 without using decimals.
Many internet resources round down the result which result in an inaccurate conversation. For best and accurate result to calculate the power budget of any cable over a certain distance and load refer the InOne Design Tool or the table at the end of this article below.
If we use the same example of the cable TOL4079029/24 which has 4x1.5mm2 i.e. 2 x 3mm2 this will fall between AWG 13 and AWG 12 as in the table below (wiki article)

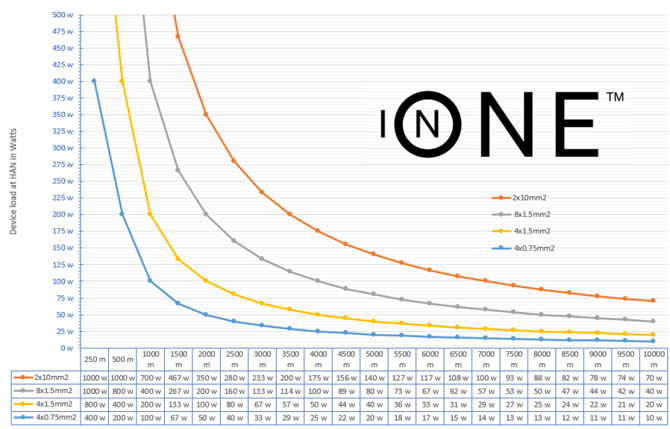

InOne Load vs Distance chart and table
The below chart is for point to point quick reference guide for more elaborate design refer the InOne Design tool at www.inone-design.com and read the InOne Design Tool guide
